Product Details

Original M5StickC PLUS2

 Description
M5StickC PLUS2 is an iterative version of M5StickC PLUS, featuring the ESP32-PICO-V3-02 chip as the main controller with built-in WiFi functionality. The compact device integrates a wealth of hardware resources within its small form factor, including infrared, RTC, microphone, LED, IMU, buttons, buzzer, and more. It boasts a 1.14-inch TFT screen with a resolution of 135*240, driven by the ST7789V2. The battery capacity has been increased to 200mAh, and the interface also supports HAT and Unit series products. This compact and versatile development tool is designed to spark limitless creative possibilities.
M5StickC PLUS2 facilitates the rapid prototyping of IoT products, streamlining the entire development process. Even beginners in programming can easily build interesting applications and apply them to real-life scenarios using M5StickC PLUS2.
 Features
ESP32-­PICO-­V3-­02-Base,support WiFi
Built-in 6-Axis IMU
IR transmitter
Microphone
RTC
Buttons, LCD(1.14 inch)
Built-in Lithium Polymer Battery@200mAh
Extendable Socket
Built-in Passive Buzzer

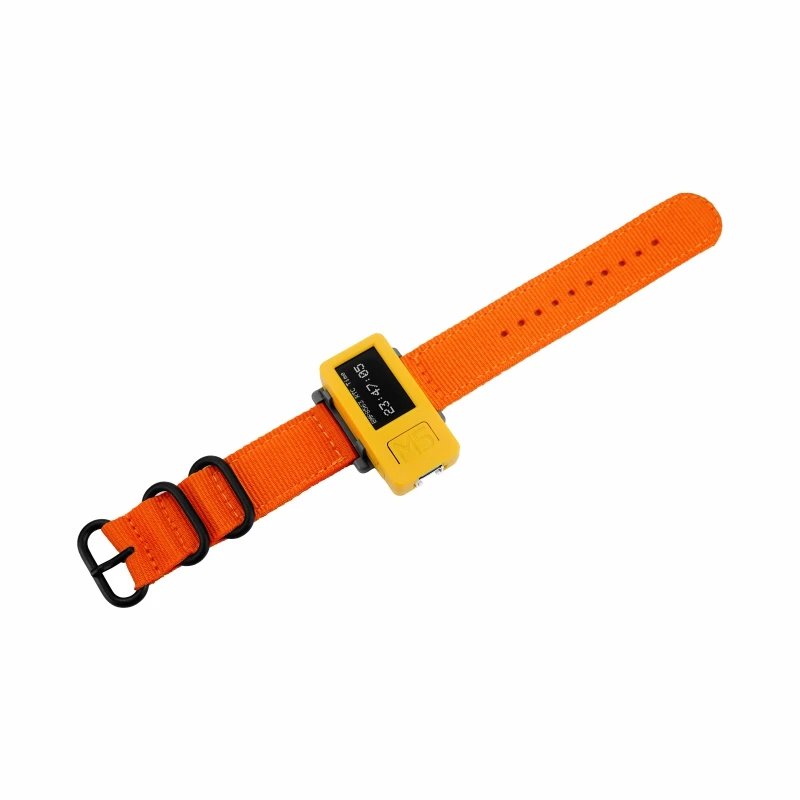

Wearable & Wall mounted
Compatible with multi-platform development:
  • UIFlow
  • MicroPython
  • Arduino
  • NET nanoFramework
Applications
  • Internet of things terminal controller
  • Wearable devices
  • Stem education product
  • DIY creation

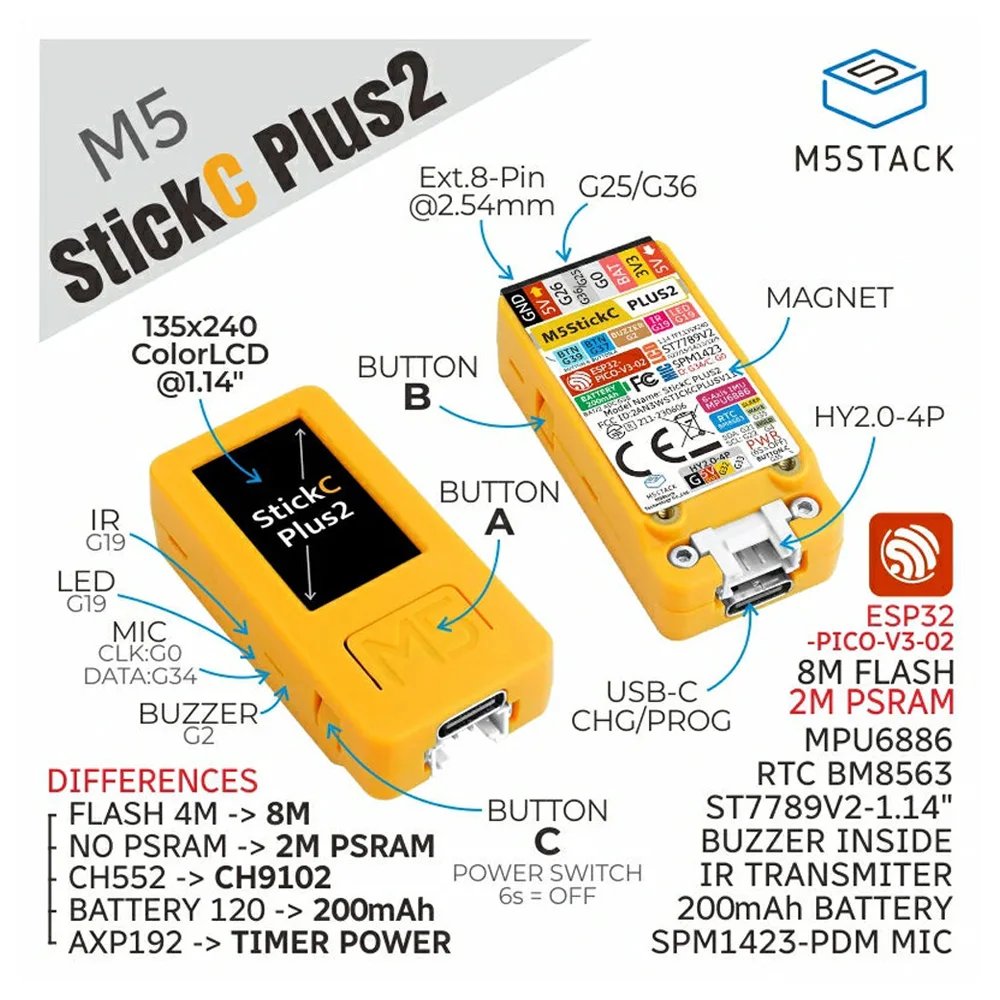

 Specification
ESP32:    ESP32-PICO-V3-02, 240MHz dual core, support wifi, 2 MB SPI PSRAM, 8 MB SPI flash
PSRAM:    2 MB PSRAM
Flash:     8 MB flash
Power Input:    5V @ 500mA
Port:   TypeC x 1, GROVE(I2C+I/0+UART) x 1
LCD screen:    1.14 inch, 135*240 Colorful TFT LCD, ST7789v2
Button: Custom button x 3
Power indicator LED: GREEN LED(non-programmable)
MEMS: MPU6886
Buzzer: built-in buzzer
MIC:   SPM1423
RTC:    BM8563
Battery: 200mAh @ 3.7V
Antenna:   2.4G 3D Antenna
PIN port:  G0, G25/G36, G26, G32, G33
Operating Temperature: 0°C to 40°C
Case Material: Plastic ( PC )

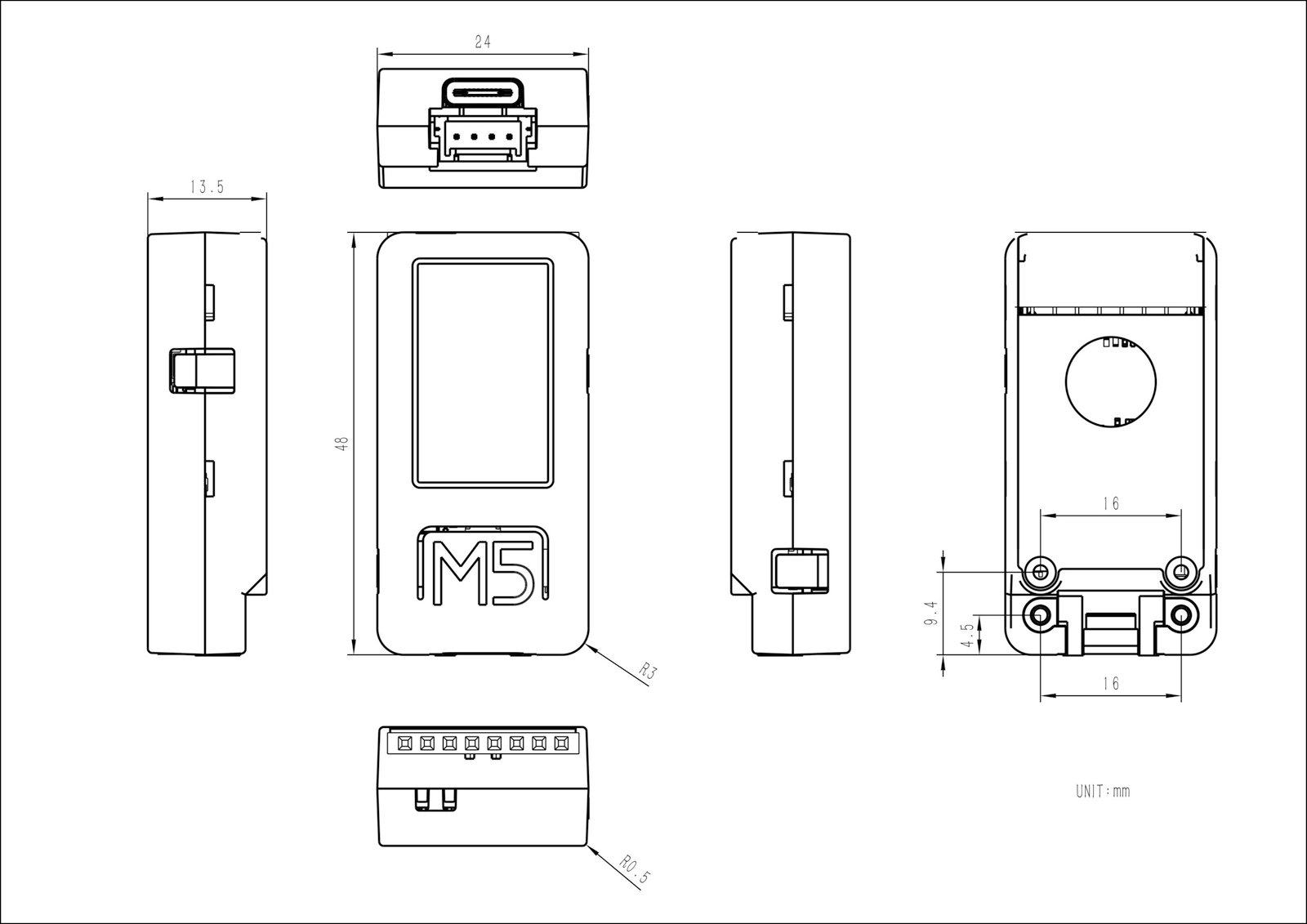

Product Size: 48*25*13mm
Package Size: 114*64*23mm
Product Weight: 17g
Package Weight: 24.8g
Packaging List 1:
M5StickC PLUS2 Standard package

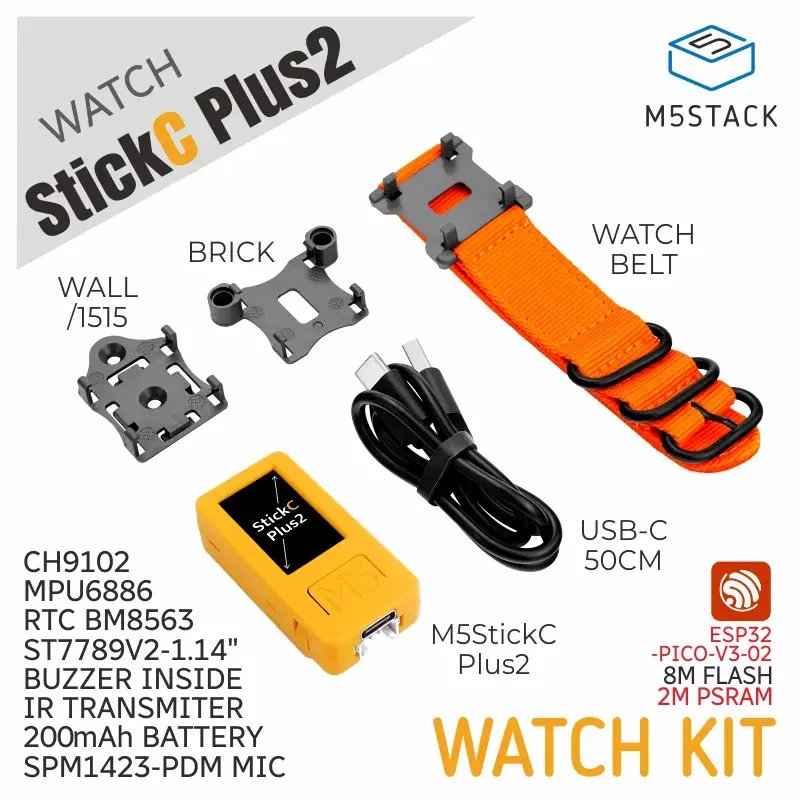

Packaging List 2:
M5StickC PLUS2 with Watch Accessories
 Kindly Remind
Power on:
Wake up can be started by pressing “BUTTON C” for more than 2 seconds, or IRQ signal triggered by RTC regularly. After triggering the wake up signal, the hold(G4) pin needs to be set to a high level (1) in program initialization to maintain the power supply, otherwise the device will enter the shutdown state again.
Power off:
When no USB external power supply is available, press BUTTON C for more than 6 seconds. Or when there is no USB external power supply, set HOLD(GPIO4)=0 in the program operation, that is, to achieve power off. When the USB is connected, press the “BUTTON C” button for more than 6 seconds to turn off the screen and enter the hibernation state, but not power off.
